GatEx - Quick-Acting Slide Valve

The GatEx quick-acting slide valve is part of a system used to prevent the propagation of an explosion between the individual units of the production technology. The GatEx is activated when an explosion is detected. Specially developed pressure and optical detectors constantly monitor the protected zones of the production technology. The DetEx pressure detector and the LumEx 1 or LumEx 4 optical detectors can be used for detection. Activation of the GatEx is also possible via the VMP explosion venting device. The detector sends a signal to the control unit, which activates the closing mechanism. The quick-acting slide valve is closed pneumatically. When an explosion occurs, the pipe will be completely closed in milliseconds. GatEx can be used in facilities using pneumatic conveying, extraction and in places with a short installation distance. It is suitable for technologies designed for maximum explosion pressure (pmax). The design includes fail-safe feature, which puts the slide in a safe state (closed) in case of a power cut or a pressure drop in the protected technology. The device is certified according to EN 15089.

Download brochure

WHERE IS THE RISK?

In technologies, due to the ignition of an explosive mixture, such as a mixture of dust with air, gas with air, combustible mist, and their combinations. In pneumatic transport, the risk of explosion is higher because the initiation source can enter the piping system very easily at the beginning of the entire process.

ADVANTAGES

  • suitable for pipes from size DN 50
  • pressure resistance up to 21 bar
  • extremely fast reaction time
  • short installation distance

PREVENTION OF EXPLOSION propagation BETWEEN

  • filters
  • hoppers
  • mills
  • crushers
  • dust separators
  • dryers
  • cyclones
  • filling pipes and other industrial equipment

Protection of filter unit with HRD system And Gatex

GatEx with HRD system RSBP

INSTALLATION OF GATEX QUICK-CLOSING SLIDE VALVE ON FILLING PIPE

GatEx on filling pipe RSB"

PROTECTION WITH FLAMELESS VENTING DEVICE FLEX AND GATEX

GatEx with Flex RSBP

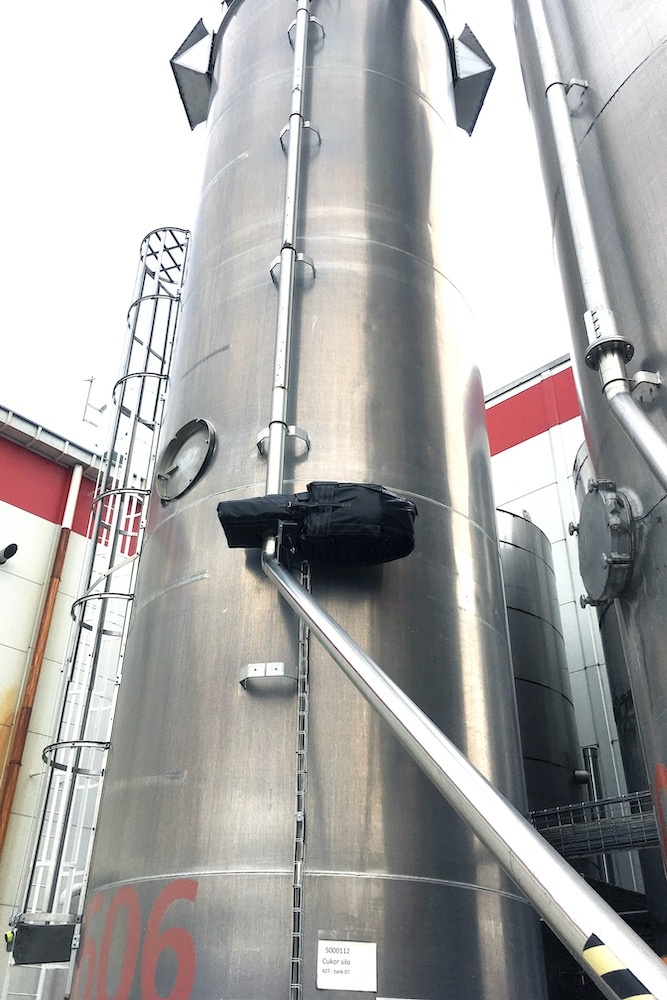

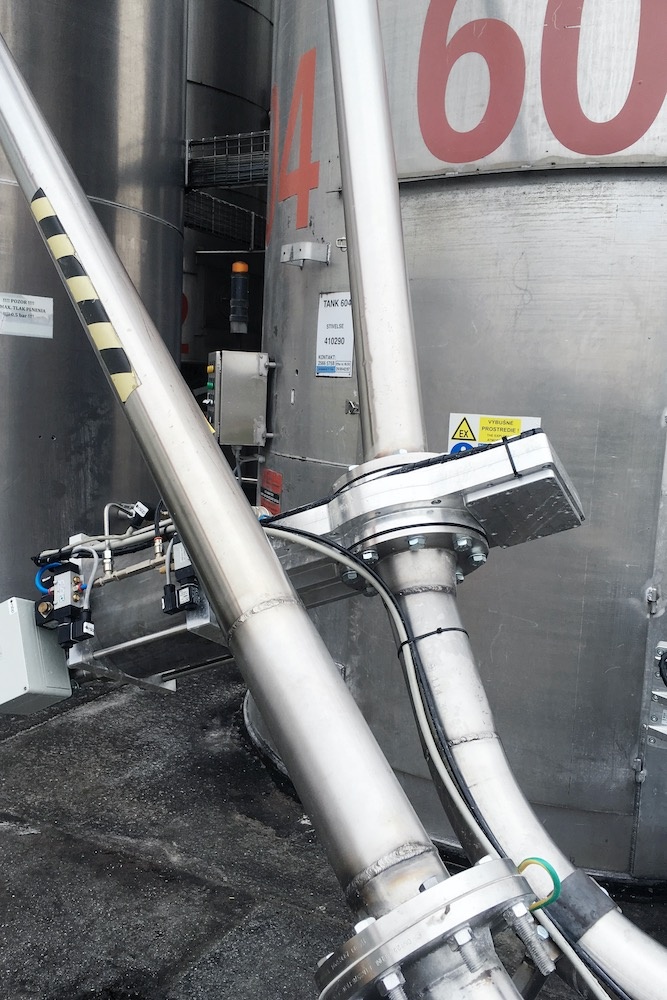

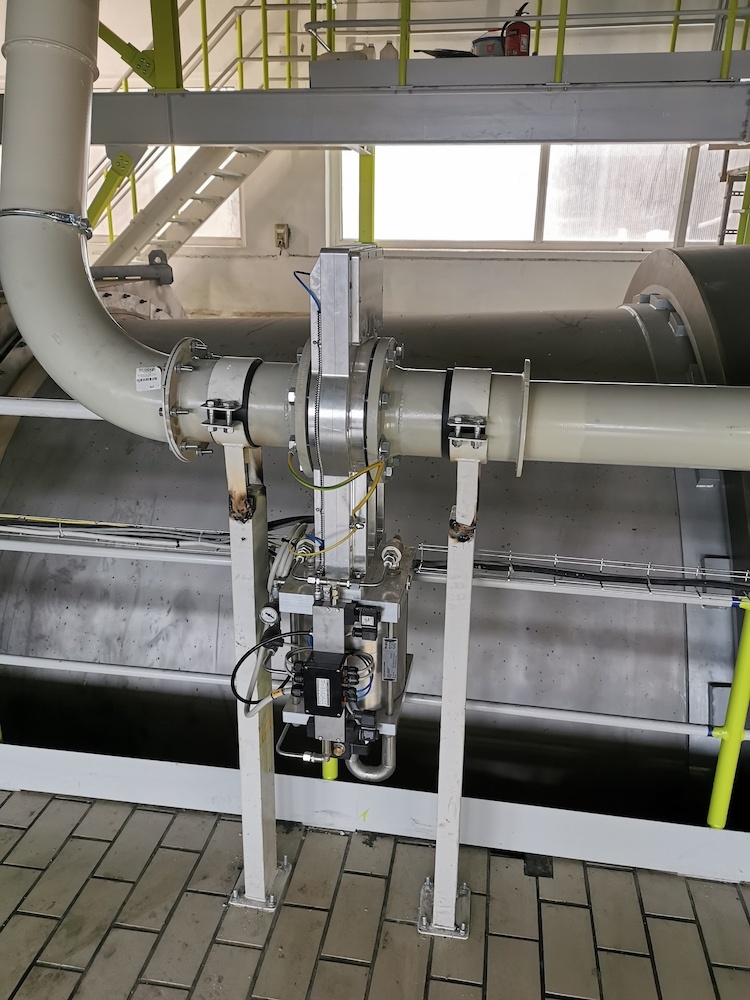

References from installations

Gatex

 Type A
(mm)
B
(mm)
C
(mm)
D E F
(mm)
G
(mm)
H
(mm)
I
(mm)
J
(mm)
K
(mm)
L
(mm)
Weight
(kg)
 DN 50 165 125 50 4 M16 230 336 193 436 104 299 837 44
 DN 65 185 145 65 8 M16 245 344 202,5 468 104 299 884 48
 DN 80 200 160 80 8 M16 260 351 205 493 104 299 924 51
 DN 100 220 180 100 8 M16 280 379 235 553 104 305 1004 58
 DN 125 250 210 125 8 M16 305 391 273 628 104 305 1104 64
 DN 150 285 240 150 8 M20 335 406 310 703 104 305 1204 73
 DN 200 340 295 200 12 M20 390 458,5 385 853 124 305 1404 100

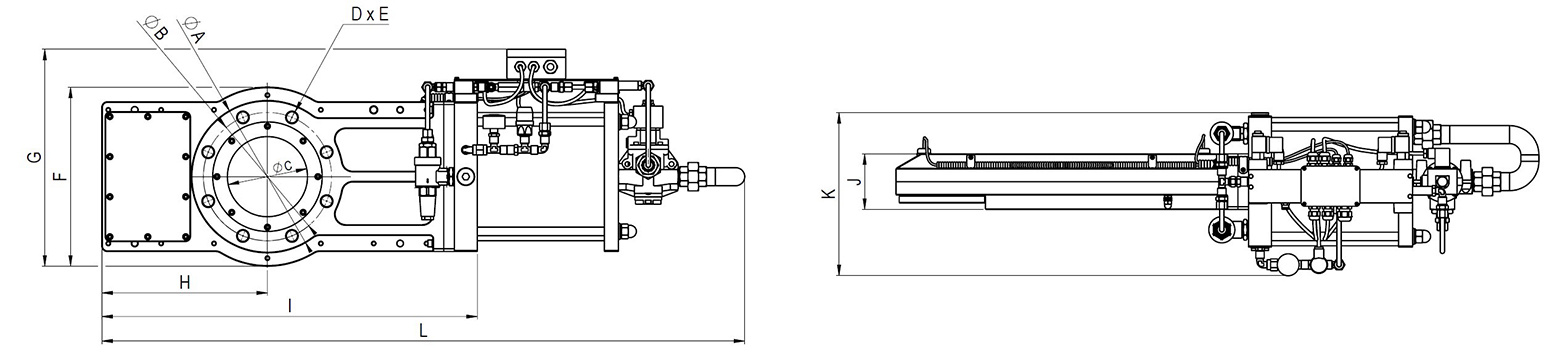

Scheme GatEx
